PMT Module
SeekerS
is designed to keep in mind the
challenging situation where every photon
matters and you can not enhance light so
we offer sensors with enhance low light
detection capability to meet experiment
need.
Seeker S family sensor are based on P
Applications
- Spectrophotometers – fluorescence spectrophotometry, Raman spectroscopy
- Liquid gas chromatography
- X-Ray diffract meters
- Biotechnology – flow cytometer, DNA micro array scanner
- LIDAR
- Pollution monitoring
- Medical diagnostics
- Radiation monitors
- Nuclear medicine
- Liquid scintillation counting
SEEKERS PMT
SALIENT FEATURES

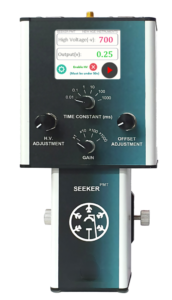

Seeker S PMT Module
PMT module has a inbuilt 28mm PMT (Socket is suitable for
most of 28mm side On PMTs with working voltage within
-200 to -1200V), a high-voltage power supply, a voltage
divider, amplifier, and if needed wavelength cut filter can also
be provided. Magnetic shield is provided to protect the pmt
from any external interference.The PMT convert light into a
electrical signal with a gain in the range of 106
to 107 which is
further processed to a more usable analog form so that it can
be observed and analyzed on oscilloscope or through DAQ
in PC.
We offer both Current/Voltage Output type PMTs as well as
Photon counting PMT modules to meet user requirements.
It comes with 2.4″ color touchscreen LCD that shows HV
and Signal Output Simultaneously so no additional toggles
are needed. The unit include internal/external high voltage
and onboard offset adjustment, BNC signal output with
selectable gain and time constant.
Optional front end optics
and Optomechanical
Adapters are available for
detector coupling
and Optomechanical
Adapters are available for
detector coupling
NOTE: Digital output and high
speed amplification (signal
conditioning), Gating, Cooling and
photon Counters can be provided
based on user requirement.
We also offer housing for Head
On type PMT sensor module
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| High voltage adjustment( Onboard/External) | : | -200 V to -1200V (Continuous-variable) |
| Anode ripple/noise | : | 1mVpp |
| Temperature coefficient(˚C) | : | 0.005%/˚C |
| : | 0˚C to 50˚C |
| PRE-AMPLIFIER: | ||
|---|---|---|
| Maximum output voltage | : | ±10V |
| Switchable gain | : | ×1, ×10, ×100, ×1000 |
| Switchable time constant(ms) | : | 01,.1,1,10,100,1000 |
| High Voltage and Power Supply Specifications | |
|---|---|
| Input | 220V AC with inbuilt filter circuitry and fast blow fuse to protect from any accidental collapse. |
| Safety features | onboard safety circuitry prevents the high voltage from exceeding beyond tolerable limits. The circuitry /board is ESD protected and features resettable fuse to avoid overcurrent.The device seeks the permission from the user before enabling high voltage to ensure that the pmt is never operated accidently. |
| High Voltage | Guaranteed ripple free high voltage -200 to -1,100 VDC ,adjustable manually through the knob on the panel or from pc through external analog voltage source.Though the voltage can be changed from 0V to -1200V dc. |
| External High | 0 to +1.2VDC (0 = 0 V, 1.2 = -1,200 V) |
| Voltage Adjust | Continuously adjustable |
| Input Regulation | ± 0.05% max. (for 15 V ± 1 V input). |
| Load Regulation | ± 0.05% max. |
| Ripple | 1 mV p-p max. |
| Temperature Coefficient | ± 0.01% max. (+5 to 40°C) |
| Drift | ± 0.03%/hr. max. (after 15 minute warm-up) |
